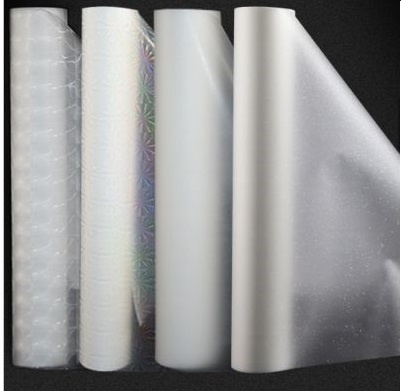

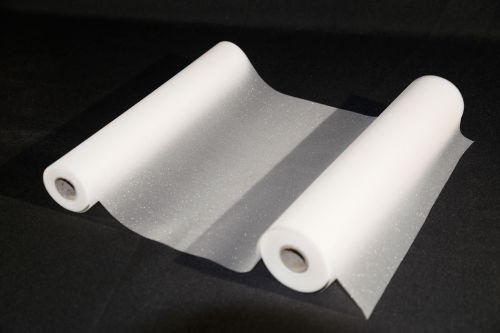

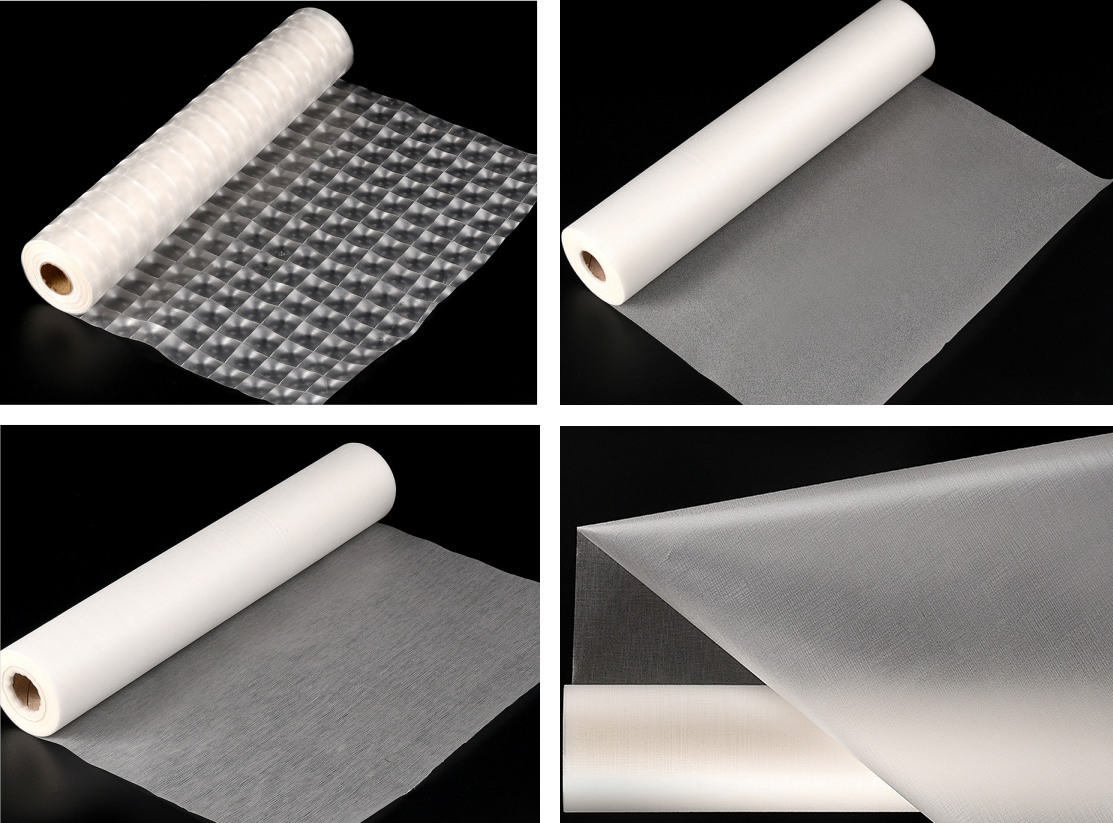

BOPP thermal lamination film

• Surface layer: BOPP
• glue layer: EVA adhesive

• Thickness: GLOSSY: 25μm(12+13) 27μm(15+12) 30μm(18+12)
• MATTE: 27μm(15+12) 30μm(18+12)
• Width: 310~1880mm
• Length: 100~3000M
• Paper core: 25.4mm (1 inch),58mm(2.25inches),76mm(3 inches)
• BONDING: less than 2

Process Parameter:

• Equipment for thermal film: dry and wet film laminator
• lamination temperature: 95~105°C
• Roller pressure: 10-20Mpa
• Speed: 8-20 m/min

Directions for using BOPP thermal laminating film:

• Normal process temperature is 90°C-105°C, roller pressure and temperature vary with different types of paper, ink and machines.
• When using the film for the first time or do other treatment, try a small volume before mass laminating.
• Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture and powder.
• Make sure put the material in a low-temperature, dry place.
